Mô tả sản phẩm

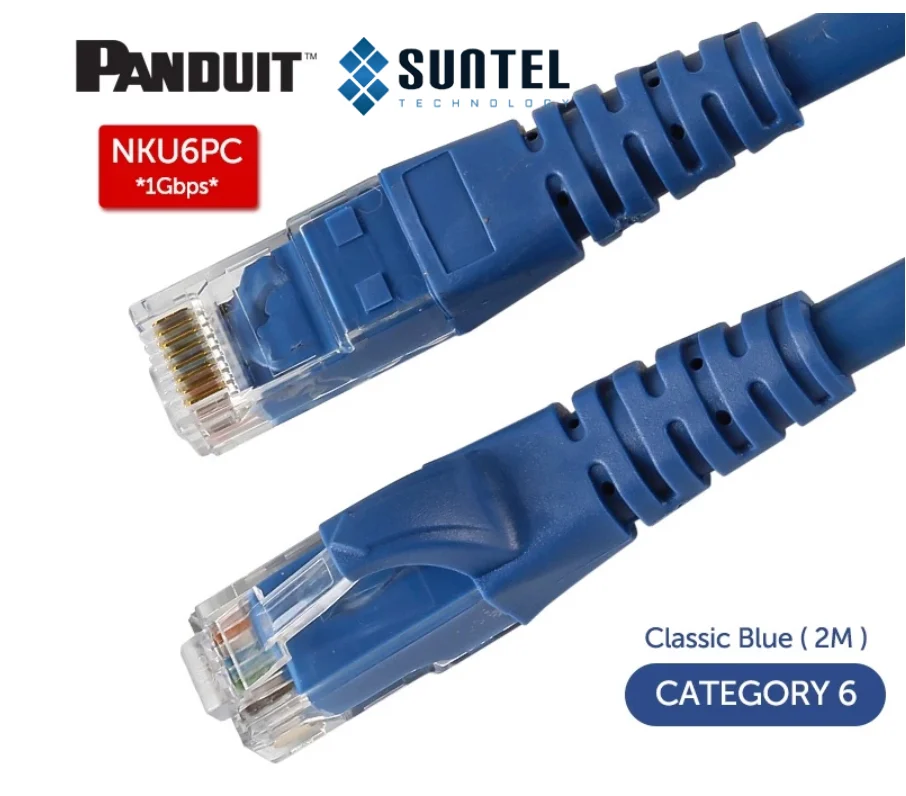

Dây nhảy PANDUIT Cat 6 24 AWG UTP Patch Cord, 2m, Blue
Hãng: PANDUIT
Mã hàng: NKU6PC2MBU
Mô tả sản phẩm: Dây nhảy Cat 6 24 AWG UTP Patch Cord, 2m, Blue
Quy cách: 2 mét
Màu sắc: xanh
Thông số kỹ thuật
Specification
| Application | Used in all work area outlets and patch panels; wired to be compatible with both T568A and T568B wiring schemes. Suitable for Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), and 1000BASE-T (Gigabit Ethernet); 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM ; Token Ring 4/16; and Voice over internet protocol (VoIP) |
| Product Type | NetKey Copper Patchcord |
| Conductor Gauge (AWG) | 24 |
| Conductor Gauge (kcmil) | 0.4 |
| Sub Brand | NetKey® |
| Performance Level | Category 6 |
| Conductor Type | Stranded |
| Cable Construction | U/UTP |
| Patch Cord Type | Unshielded |
| Plug Housing Material | Polycarbonate |
| Jacket Material | Polyvinyl Chloride |
| Connector 1 Type | Modular Plug |
| Connector 2 Type | Modular Plug |
| Overall Length (m) | 2 |
| Nominal Cable Outside Diameter (mm) | 5.8 |
| Wiring Scheme | T568B |
| Maximum Operating Temperature (°C) | 60 |
| Minimum Operating Temperature (°C) | -10 |
| Maximum Storage Temperature (°C) | 70 |
| Boot Color | Blue |
| Color | Blue |
| Flammability Rating | CM |
| Standards Met | Exceeds ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E channel requirements at swept frequencies up to 250 MHz. Meets ANSI/TIA-568.2-D and ISO 11801 Category 6 component requirements at swept frequencies up to 250 MHz. |
| IEC Variant | 60603-7 |
| PoE Compatibility | PoE/PoE+/PoE++ |
| Plug Type | 8 Position |
Packaging Detail
| UPC | 61305676108 |
| Std. Pkg. Qty. | 1 |
| Std. Pkg. Volume (cf) | 0.0197 |
| Std. Ctn. Qty. | 10 |
| Std. Ctn. Volume (cf) | 0.1972 |
